Schüco AS FD 90

Schüco AS FD 90 System – Top Thermal Insulation and Premium Design

Advantages of the AS FD 90 System:

1. High thermal insulation: Thanks to its advanced construction and 90 mm installation depth, the system offers excellent thermal insulation, meeting the requirements of passive house standards.

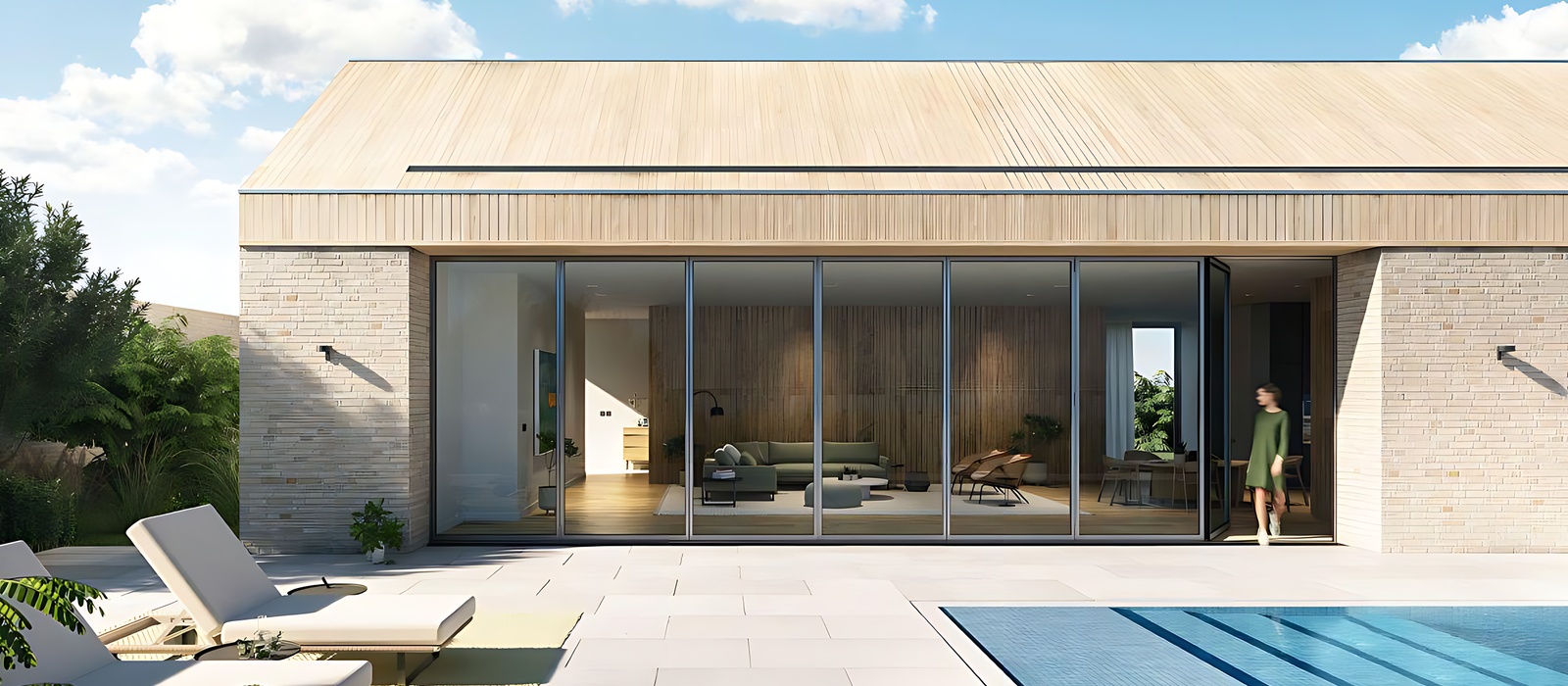

2. Large glazing areas: Enables the creation of large glazed surfaces up to 3500 mm in height and 1500 mm in width.

3. Premium design: Slim profiles and concealed hinges ensure a modern and elegant appearance.

4. Design flexibility: A wide range of opening configurations and threshold options allows the system to be adapted to individual needs.

Technical specifications:

• Installation depth: 90 mm

• Maximum sash height: up to 3500 mm

• Maximum sash width: up to 1500 mm

• Maximum number of sashes: up to 9

• Minimum visible profile width: 90 mm

• Thermal transmittance (Uw): below 1.0 W/(m²·K)

• Air permeability: Class 4 (EN 12207)

• Watertightness: Class 9A (EN 12208)

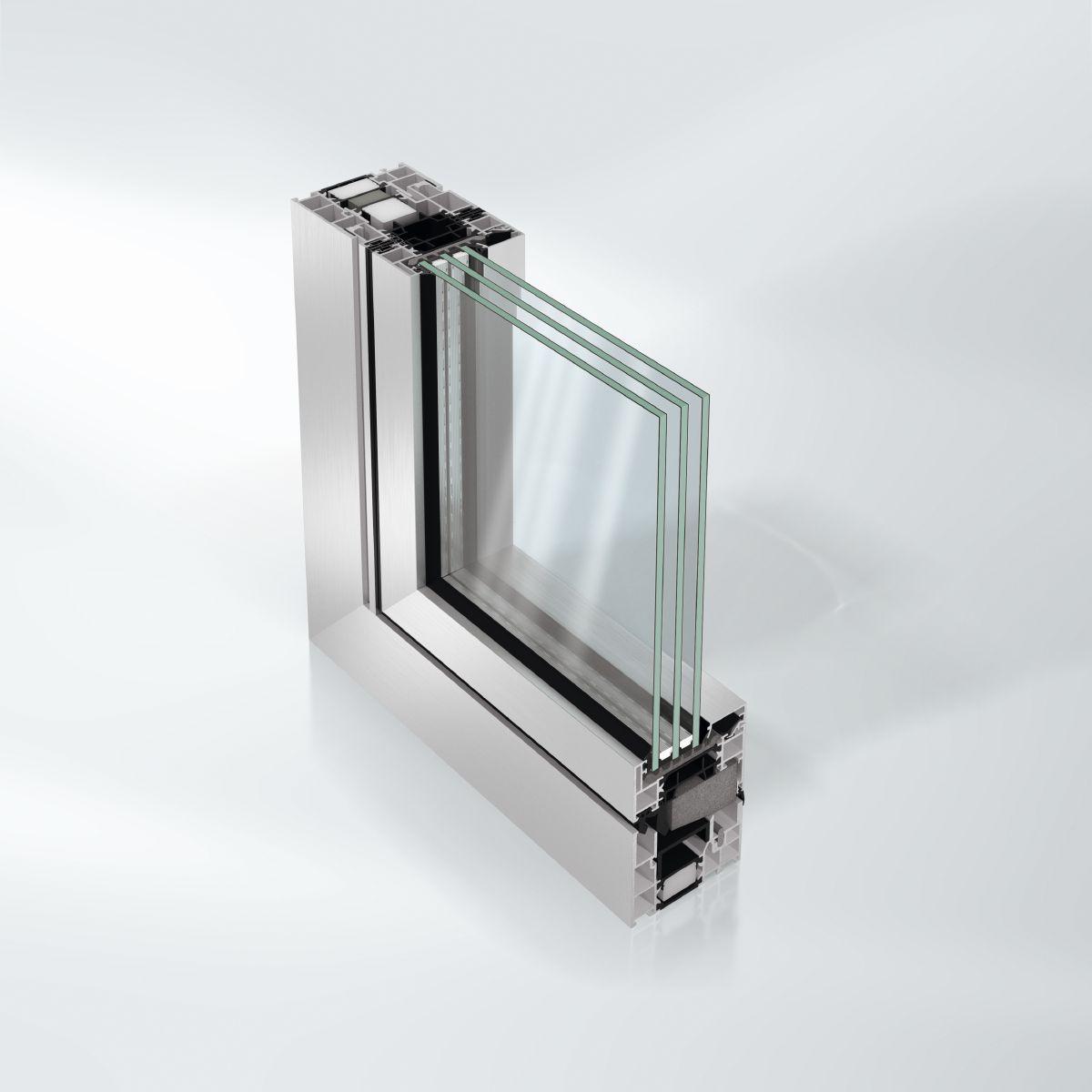

Installation depth 90 mm

Glazing package Ug=0,5

 Permeation coefficient Uw=1,0

Hidden fittings Schüco
