Schüco AS FD 75

System AS FD 75

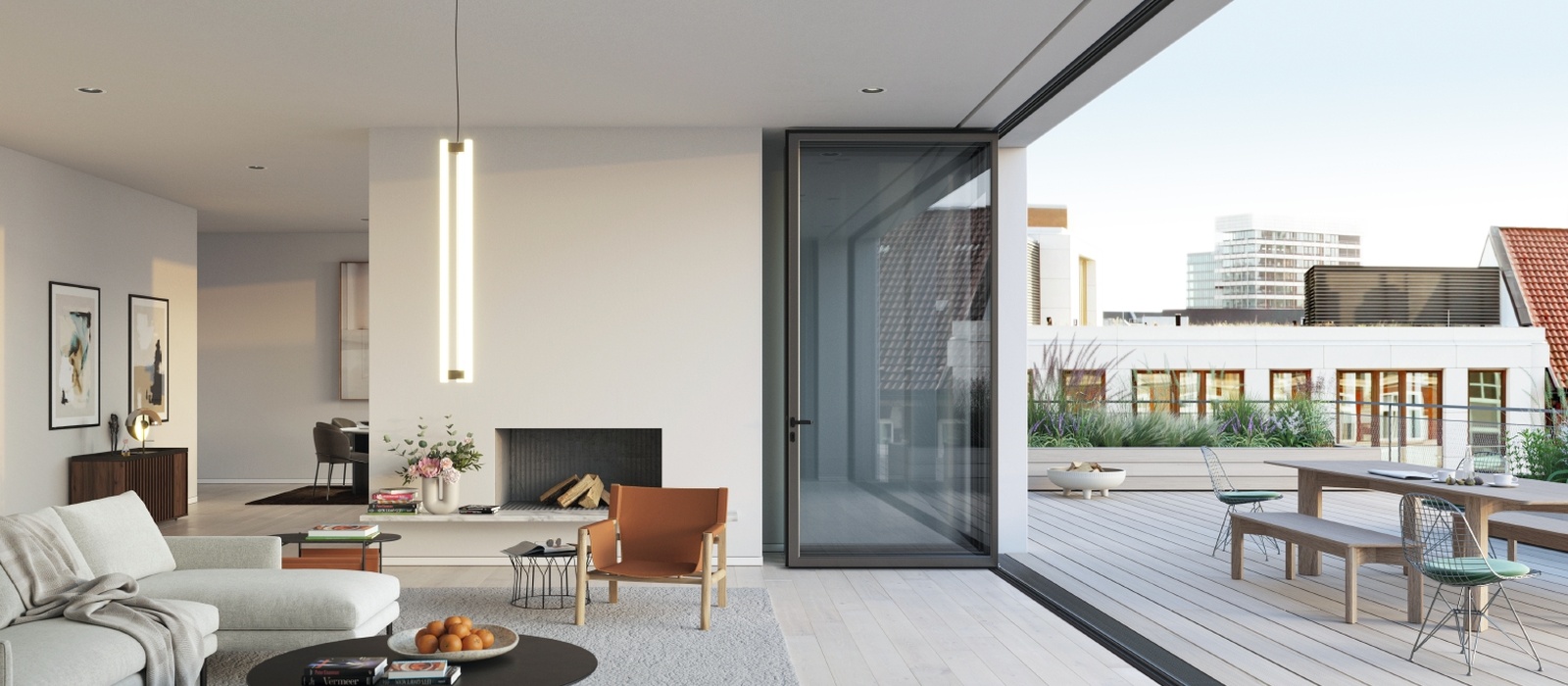

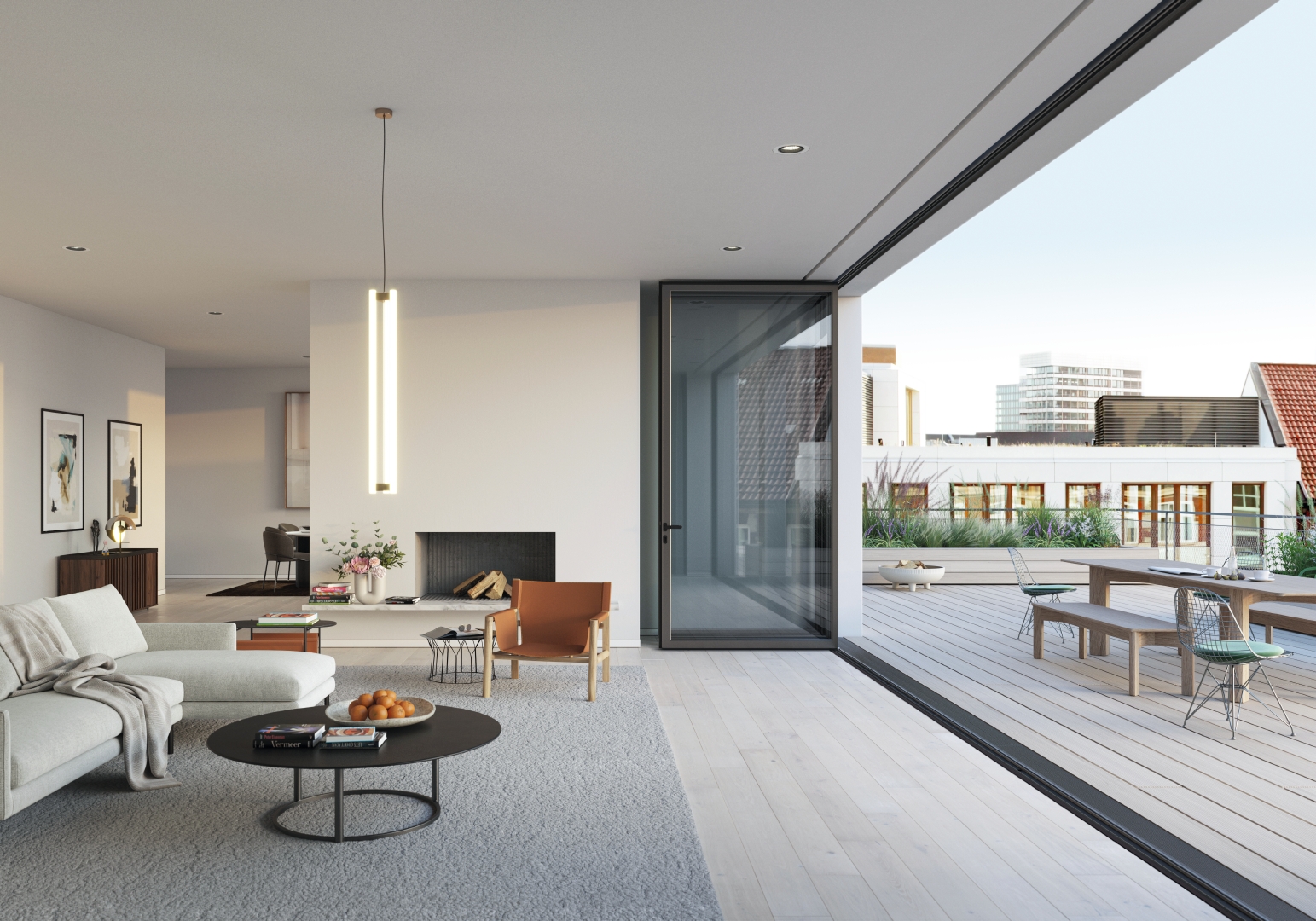

Schüco AS FD 75 is a modern aluminium folding door system that combines minimalist design with high functionality. With its slim profiles and the ability to open almost completely, this system is ideal for projects where maximum natural light and a seamless transition between indoor and outdoor spaces are essential.

System advantages of AS FD 75:

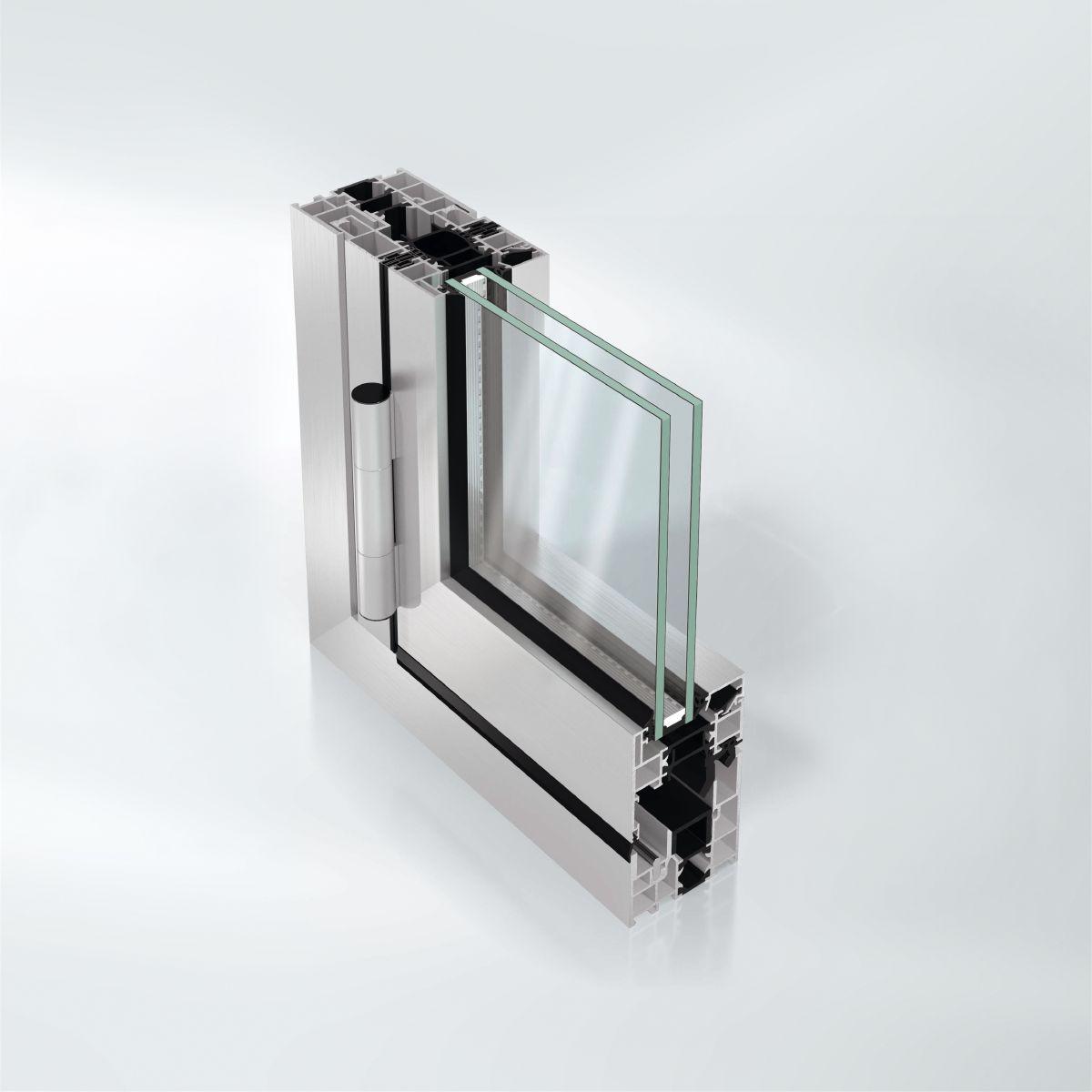

1. Slim profiles: A minimal visible profile width of just 90 mm ensures maximum interior daylight.

2. Design flexibility: Can be opened inward or outward, to the left or right, with various threshold options.

3. High insulation: Two continuous gasket levels provide excellent sealing and thermal insulation.

4. Ease of use: Optional side door allows quick access without opening the entire system.

5. Wide colour range: Available in RAL colours, wood-effect finishes, bicolour, and anodised options.

Technical parameters:

• Installation depth: 75 mm

• Maximum sash height: up to 3000 mm

• Maximum sash width: up to 1500 mm

• Maximum number of sashes: up to 9

• Minimum visible profile width: 90 mm

• Thermal transmittance Uw: from 1.0 W/(m²·K)

• Air permeability: class 4 (EN 12207)

• Water tightness: class 9A (EN 12208)
